Offset coating has evolved. Brand owners expect higher visual impact, faster turnaround times, and more sustainable production. At the same time, printers are under pressure to deliver consistent gloss, uniform protective layers, and reduced coating consumption without increasing cost or complexity.
At the center of this challenge is a critical but often overlooked component: the anilox roller.
While traditional engraving technologies have supported the industry for decades, they introduce inherent limitations that directly affect coating quality and efficiency. As coating demands continue to increase, these limitations become more visible on press.
The Limitations of Traditional Engravings
Conventional anilox rollers rely on hexagonal cell engravings to meter and transfer coating. Although widely used, this structure introduces air into the coating during transfer. As the coating is released, that trapped air forms microbubbles, which can lead to pinholes, inconsistent film build, and a noticeable reduction in visual quality.
The issue is not only air entrapment. The closed-cell structure also restricts how smoothly coating can be released onto the substrate. Instead of a controlled, continuous film, the result is often uneven laydown, variation in gloss, and instability as press speeds increase. In many cases, operators compensate by increasing coating volume, which drives up material usage and cost while still not fully resolving the underlying issue.
A further practical challenge on press is visibility and maintenance. Many offset printers operate with only one or two coating stations, limiting their ability to rotate or deeply clean rollers during production. This is compounded by the fact that most coatings are transparent, making it extremely difficult for operators to visually confirm whether an anilox roller is fully clean or partially blocked. As a result, contamination can build gradually, leading to inconsistent transfer, variability in coating weight, and reduced print quality over time.
A Different Approach to Coating Transfer

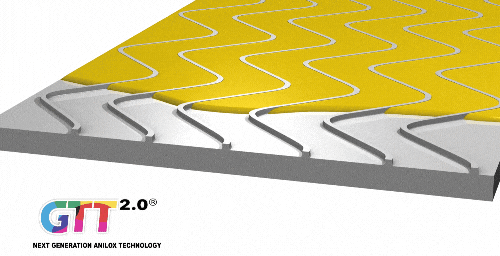

Genetic Transfer Technology (GTT) from Apex International was developed to address these limitations at their source. Rather than relying on closed cells, GTT uses a patented open-channel slalom engraving that changes how coating moves across and off the anilox surface.
This is not a small adjustment to an existing design. It is a fundamentally different approach to coating transfer, focused on improving flow dynamics instead of simply increasing volume or density.
How GTT Improves Coating Performance

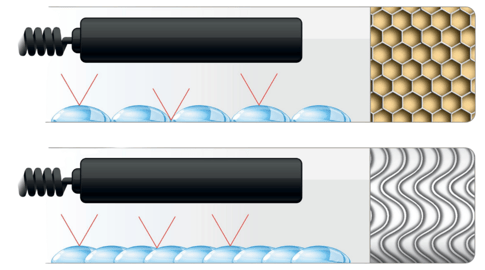

With GTT, coating is guided through continuous channels instead of being trapped and released from individual cells. This allows for a smoother, more controlled transfer, resulting in a more uniform film across the sheet. Because the structure minimizes turbulence, it also significantly reduces the introduction of air into the coating, helping eliminate microbubbles and pinholes.
The open-channel design also delivers a significant operational advantage when it comes to cleaning. Unlike traditional closed-cell engravings, GTT channels are far easier to flush and maintain, reducing the risk of hidden contamination. In an environment where coatings are transparent and visual inspection is unreliable, this “easy clean” characteristic becomes critical. Printers can maintain consistent performance with greater confidence, even with limited coating stations and demanding production schedules.

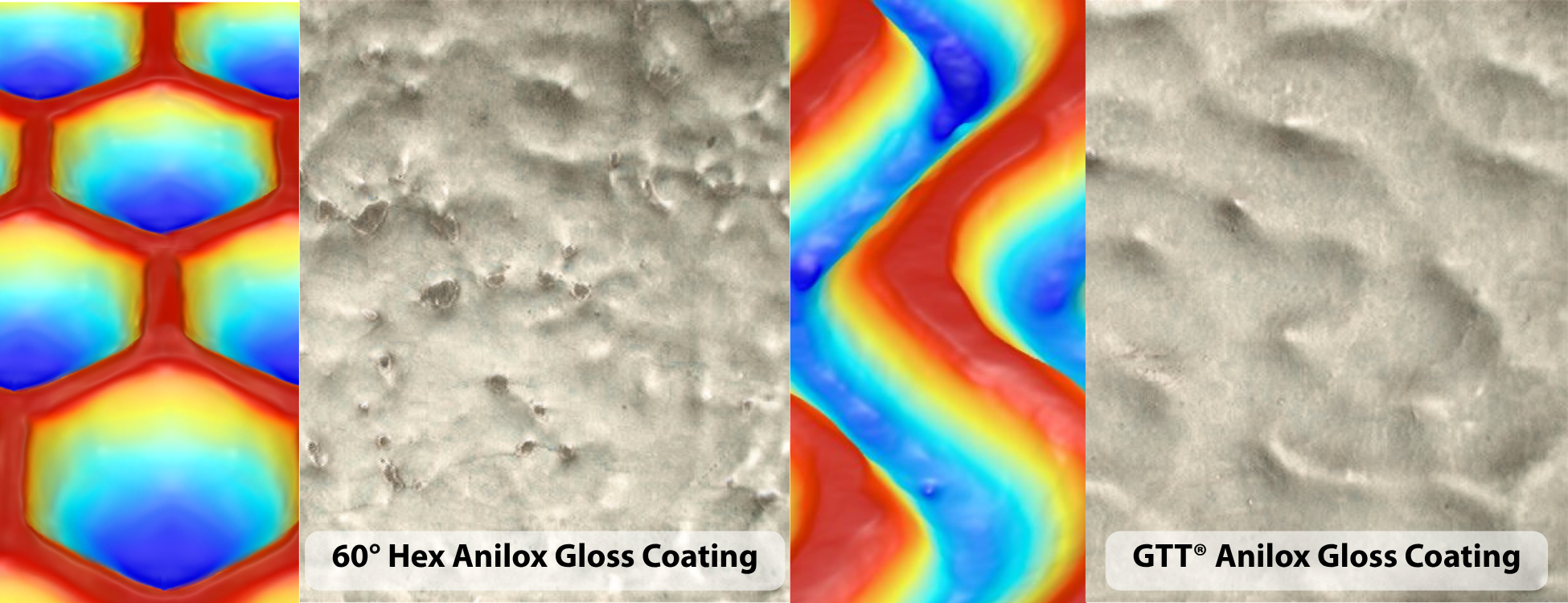

The impact becomes especially clear when evaluating surface finish. With a more even laydown, coatings level more effectively, producing higher and more consistent gloss. At the same time, the improved transfer efficiency means that less coating is required to achieve the desired result. Printers are able to reduce consumption while maintaining, and often improving, final performance.
Another important advantage is stability at higher speeds. Modern offset presses demand consistency under demanding production conditions. GTT provides a more predictable transfer mechanism, reducing variability and the need for constant adjustment during a run.
What This Means on Press
In practical terms, this translates into more reliable coating results and fewer compromises during production. Printers gain greater control over their process, with less waste and fewer defects to manage. Jobs can run more consistently from start to finish, even as speeds increase or substrates vary.
Rather than working around the limitations of traditional engravings, GTT allows the coating system to operate more efficiently as a whole. This shift not only improves print quality but also supports cost reduction and sustainability goals at the same time.
Evaluating GTT in Your Operation
The most effective way to understand the difference is to evaluate GTT under real production conditions. Running a test on your own press with your coatings and substrates provides a clear comparison against traditional engravings, allowing you to measure differences in gloss, flow, and consumption directly.
.gif?width=240&height=201&name=Untitled%20design%20(3).gif)
Traditional anilox engravings were not designed for the performance expectations placed on modern offset coating. Their limitations in air management, coating release, efficiency, and cleanability create challenges that become more pronounced as quality standards increase.
GTT represents a shift in how coating transfer is approached. By improving flow, reducing defects, and increasing efficiency, it provides a more consistent and reliable path to achieving high-quality results.
If you are looking to improve coating consistency, reduce defects, and lower coating consumption, it may be time to evaluate a different approach.
Contact Apex International to schedule a test and see how GTT performs in your press.
