Spray etching of embossing rolls is a highly precise engraving method that combines centuries-old etching principles with modern industrial technology. While techniques such as tool engraving and direct laser engraving continue to advance, spray etching remains a valuable solution for applications requiring fine detail, consistent depth, and highly repeatable surface structures.
This article explores the origins of etching, explains how spray etching works, and outlines why it continues to play a critical role in modern embossing roll production.
The Origins of Steel Etching
Etching in steel dates back to Europe in the late 15th and early 16th centuries. Initially used by armorers to decorate armor and swords, etching provided a faster and more flexible alternative to hand engraving. It allowed for more intricate and refined designs while reducing manual effort.
The use of etched rollers developed later, gaining traction in the 18th century and becoming widespread in the 19th century. By combining etching techniques with rotating cylinders, manufacturers could apply continuous patterns to materials. This innovation was especially important for industrial-scale decorative applications.
Conventional Etching vs. Spray Etching
Although both conventional etching and spray etching rely on chemical removal of material, their processes and outcomes differ significantly.
Conventional Etching
In conventional etching, a steel roll is immersed in an etching bath. A rubber roller may apply counterpressure to ensure even treatment across the surface. This method is effective for achieving uniform results but is generally less suited for intricate detailing.
Spray Etching
Spray etching uses a continuous mist of etching solution applied through nozzles or spray jets onto a rotating steel roll. The constant motion of the roll allows for precise control and even distribution of the etchant.
Key advantages of spray etching include:
- Greater precision for fine details
- Consistent and uniform etching depth
- Faster and more controlled process
- Closed-system operation for improved chemical efficiency
- Reduced vapor emissions, making it more environmentally responsible
Because of these benefits, spray etching is often preferred when tight tolerances and detailed surface structures are required.

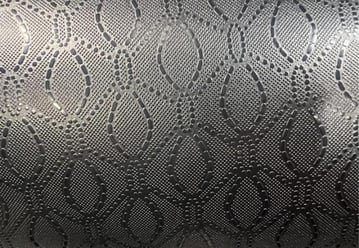

How Spray Etching Works for Embossing Rolls
The spray etching process begins by applying an acid-resistant coating to the steel roll. This coating can be made of lacquer, vinyl, or wax and serves as a protective barrier.
Next, specific areas of the coating are selectively removed, often using laser technology. These exposed areas are where the etching will occur.
When the roll is subjected to the etching solution:
- Only the exposed steel reacts with the etchant
- Protected areas remain unaffected
- Material is removed in controlled increments
This process is repeated until the desired engraving depth and pattern are achieved.
Critical factors in the process include:
- Proper adhesion of the protective coating to prevent undercutting
- Selection of the correct etchant
- Controlled etching time to achieve the required depth (measured in microns)
- Consistency across the full width of the roll
Applications of Spray Etched Embossing Rolls
Spray etching is particularly well suited for applications that demand:
- Fine and highly detailed surface structures
- Uniform etching depth across the entire roll width
- Strict tolerance control with minimal deviation
- Deeper engravings, often exceeding 1 mm

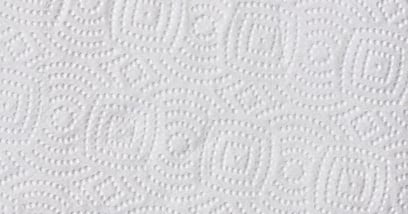

These characteristics make spray etching especially valuable in industries such as tissue production and other sectors where both precision and depth are critical to product performance.

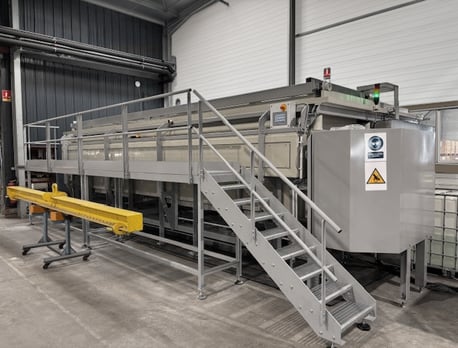

Capabilities of Spray Etching at Apex
As part of its advanced embossing program, Apex International offers spray etching solutions designed to meet demanding industrial requirements.
Typical engraving capabilities include:
- Roll diameter: 250 mm to 600 mm
- Roll length: 2000 mm to 5000 mm
- Maximum roll weight: up to 3000 kg
For applications outside these ranges, customized solutions can be evaluated based on specific project requirements.
Choosing the Right Embossing Technique
Selecting the optimal engraving method depends on multiple factors, including design complexity, required depth, material, and end-use application. Spray etching offers a unique balance of precision, repeatability, and environmental efficiency, making it a strong choice for many embossing applications.
Ultimately, achieving the best result requires close collaboration between the customer and supplier. By combining technical expertise, application knowledge, and manufacturing capabilities, the right solution can be developed for any embossing challenge.
